Well Head Control Panel (WHCP)
A reliable Wellhead Control Panel (WHCP) designed to monitor, control, and safely shut down wellhead safety valves for onshore and offshore operations.
Overview
Product Overview
Application
- Onshore Wellheads
- Offshore Platforms
- Gathering Stations
- Production Facilities
- Gas Processing Plants
- Unmanned Well Sites
Key Feature
- Reliable Emergency Shutdown (ESD) Function
- SCSSV & SSV Monitoring and Control
- Hydraulic, Pneumatic & Electro-Hydraulic Options
- PLC / RTU / SCADA Compatible
- Custom-Built for Single or Multi-Well Applications
- Designed for Safe and Continuous Operation
- Low Maintenance & Long Service Life
Available Configuration
Our WHCP can be customized to meet various field requirements:
Single Well Control :
- Manual Control System
- Hydraulic Control System
- Pneumatic Control System
- Electro-Hydraulic Control System
- Solar Powered Control System
Multi Well Control :
- Centralized Multi-Well Control
- PLC / RTU / SCADA Integration
- Remote & Local Operation
Specifications
Technical Data
| Control Module Type | Hydraulic Power Unit (HPU), Electrical, Pneumatic |
|---|---|
| SCSSV Range | 0 - 10000 psig |
| SSV Range | 0 - 10000 psig |
| WV | 0 - 10000 psig |
| SDV | 0 - 10000 psig |
Related Products
Related Products

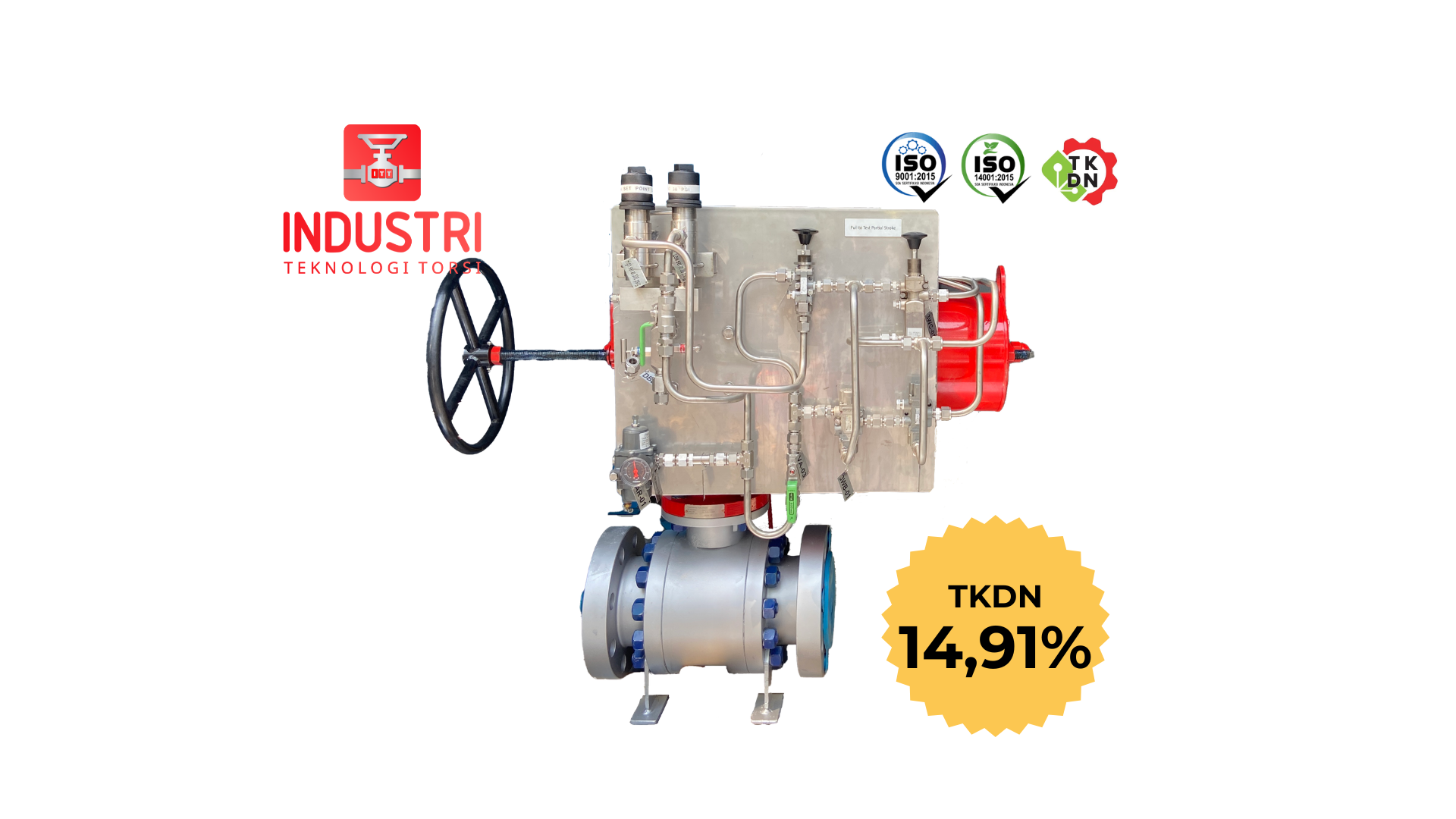

Shut Down Valve (SDV)
Our Shut Down Valve (SDV) solutions are engineered for critical safety applications, featuring a rapid shut-off mechanism that ensures the protection of industrial systems in emergency situations. Designed for both local and remote operation, our SDV systems enhance safety and compliance with stringent industry standards. 14,91%Value of Local Content TKDN Certified
View details

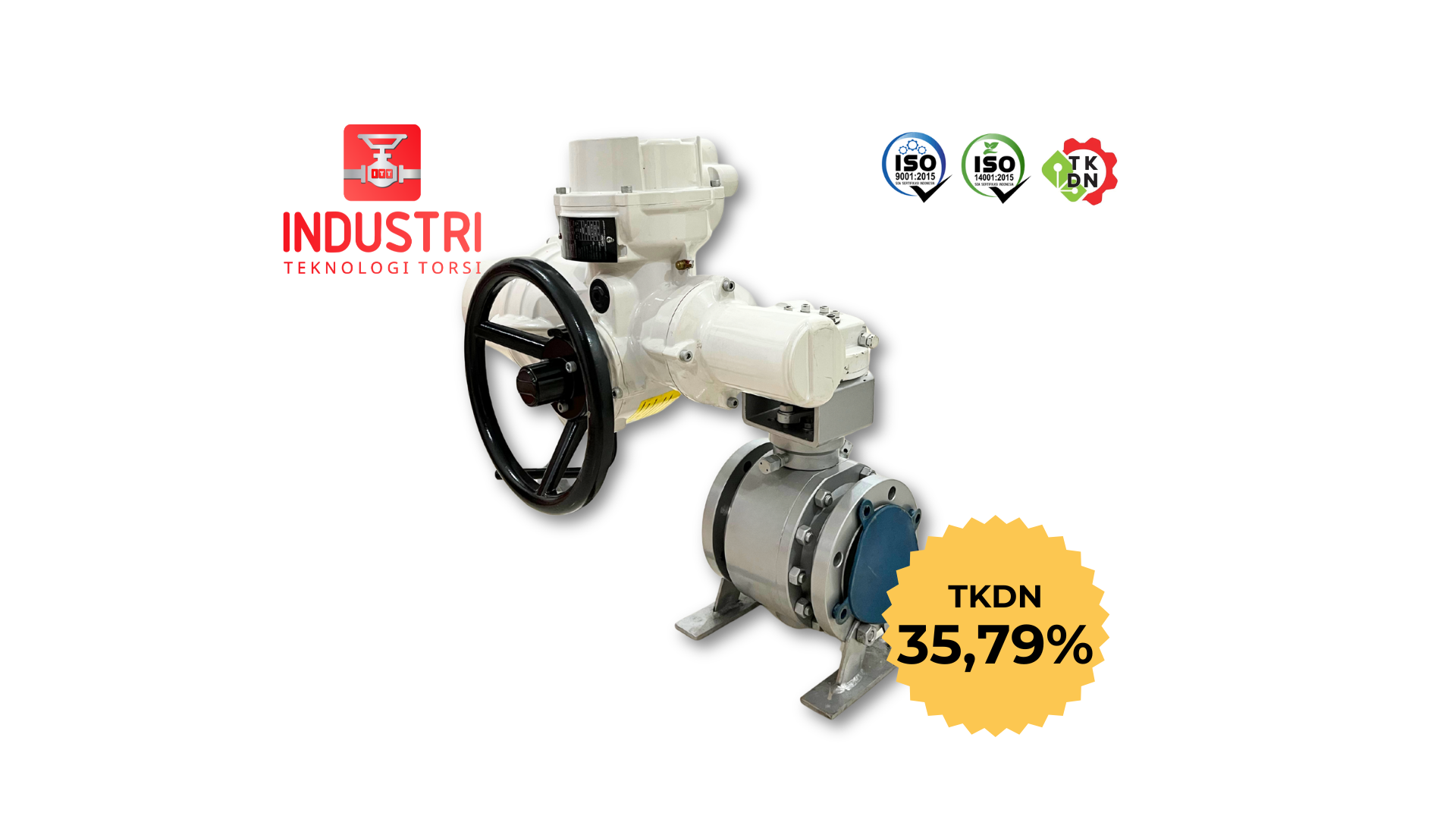

Motor Operated Valve (MOV)
Our Motor Operated Valve (MOV) systems are designed to offer reliable motor-driven automation with various types of electric actuators, ensuring seamless integration with IHLA system and PLC/DCS system. These systems enhance operational efficiency by providing precise control and monitoring capabilities. 35,79%Value of Local Content TKDN Certified Number
View details

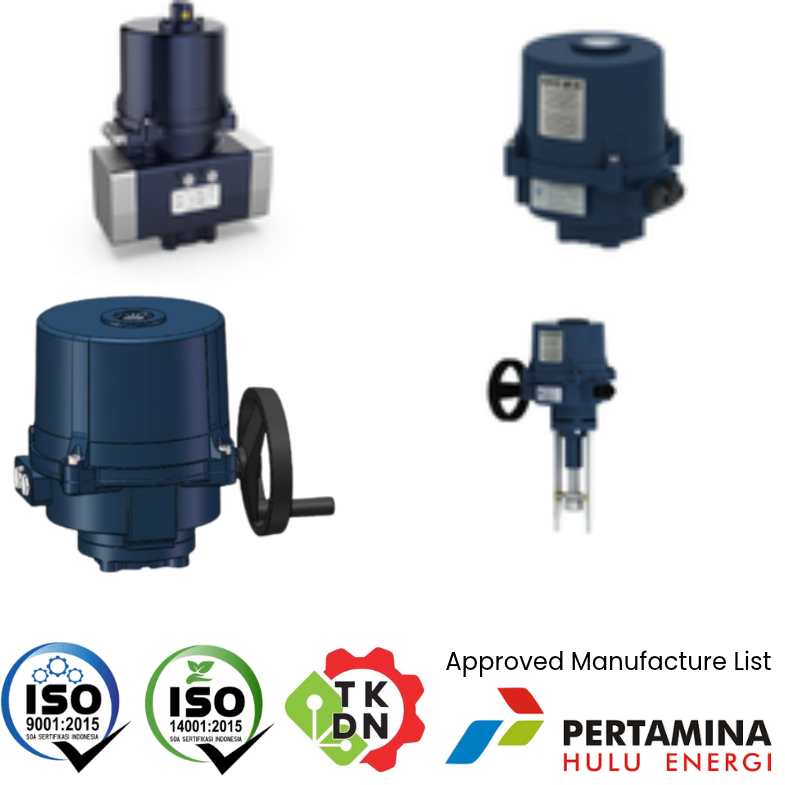

VTM Series Electric Actuator
